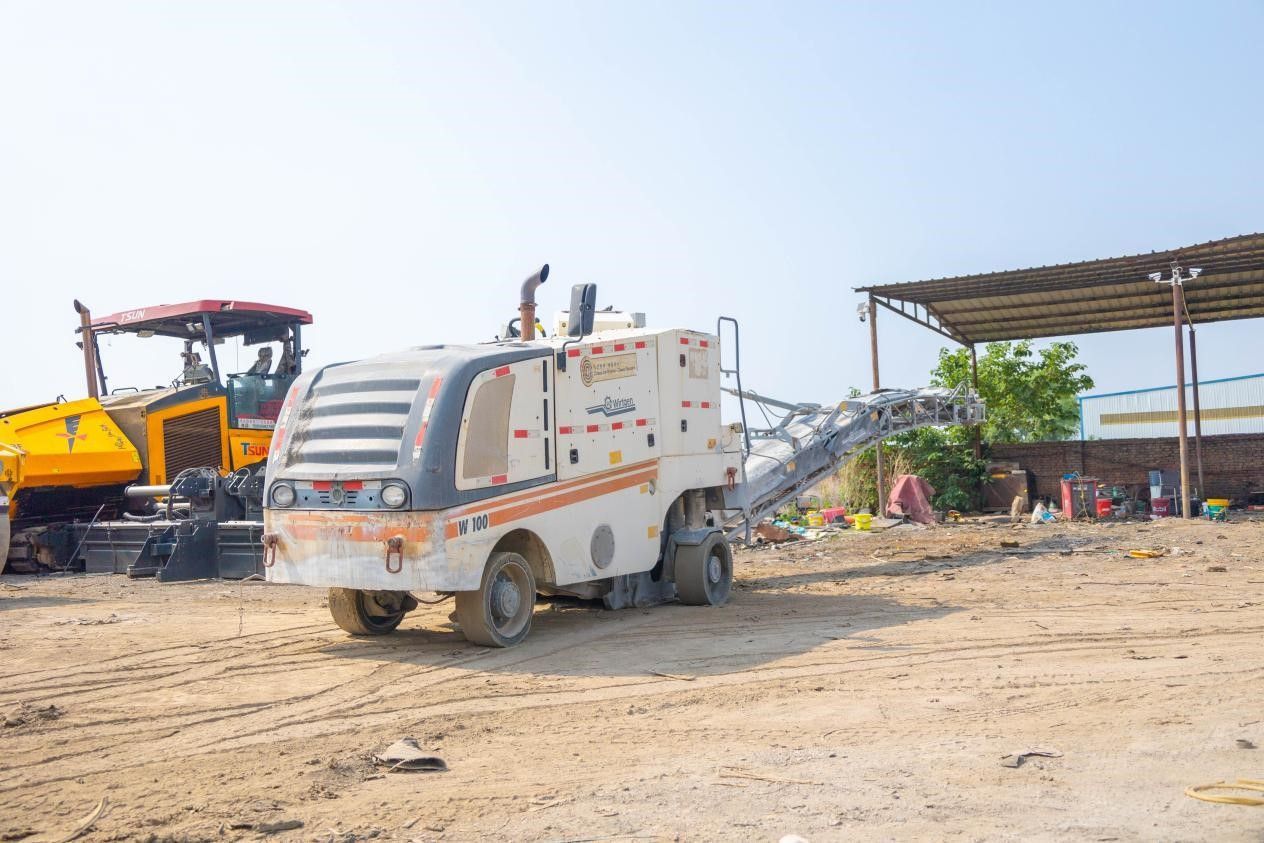

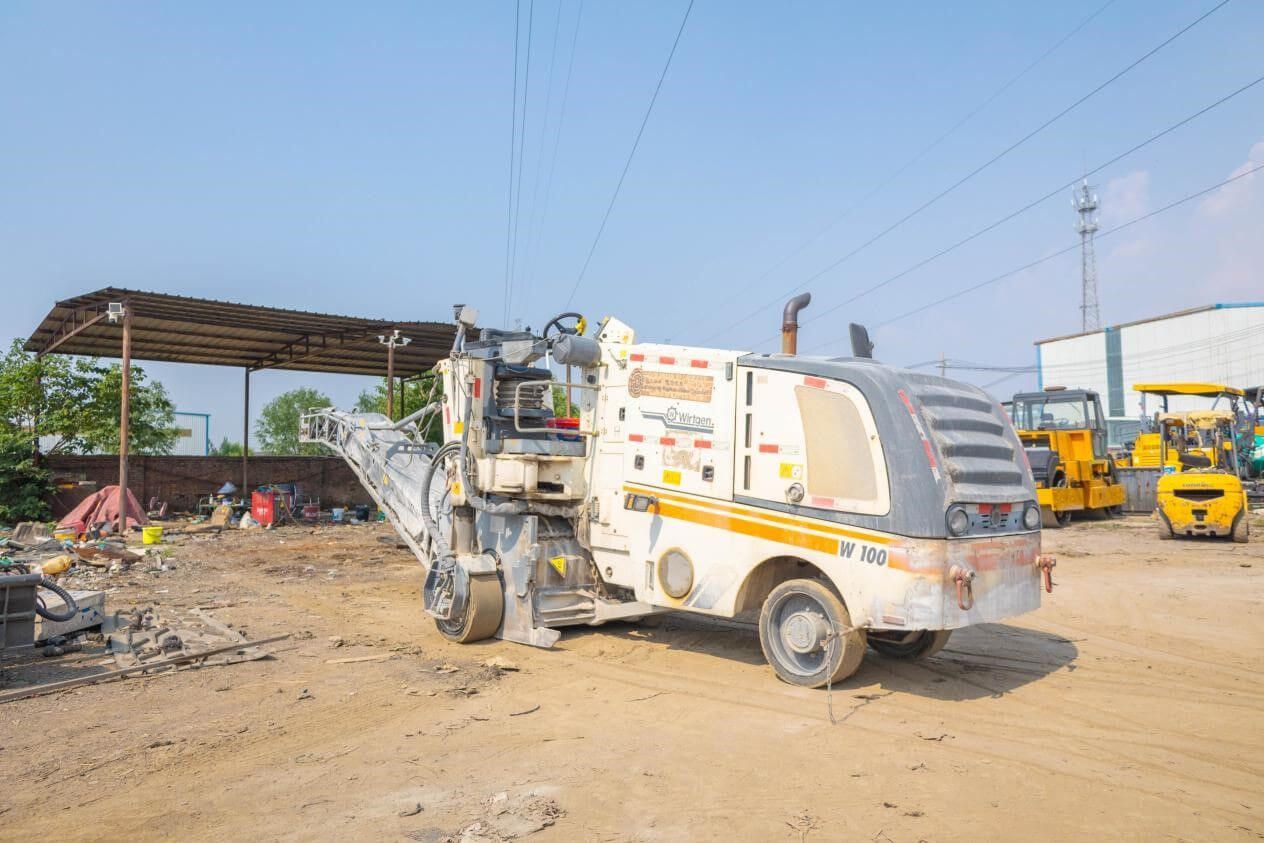

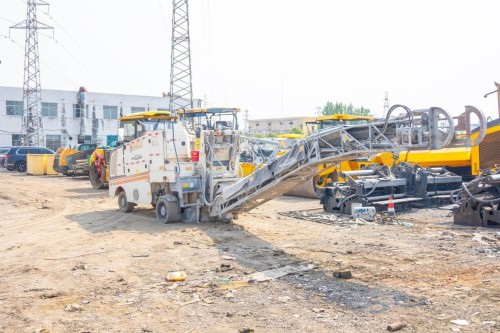

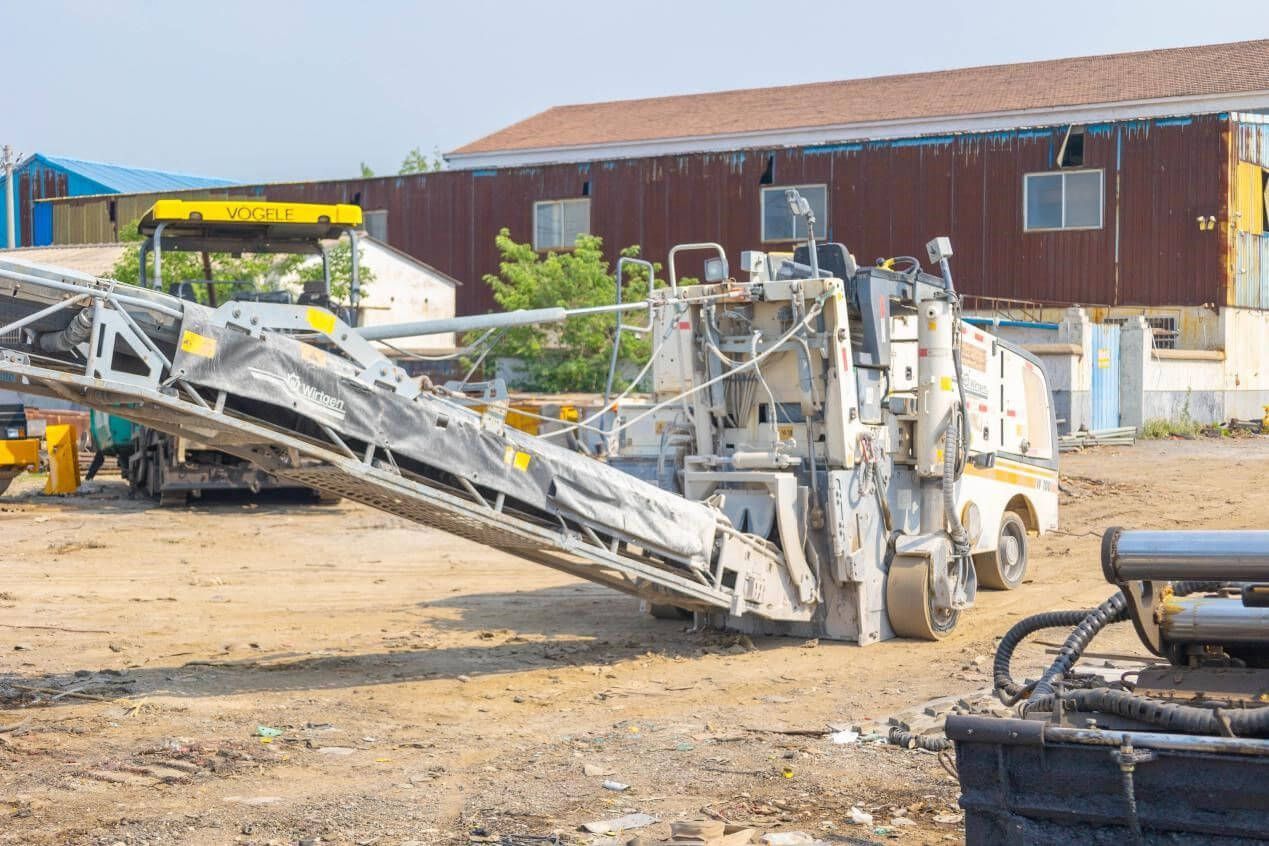

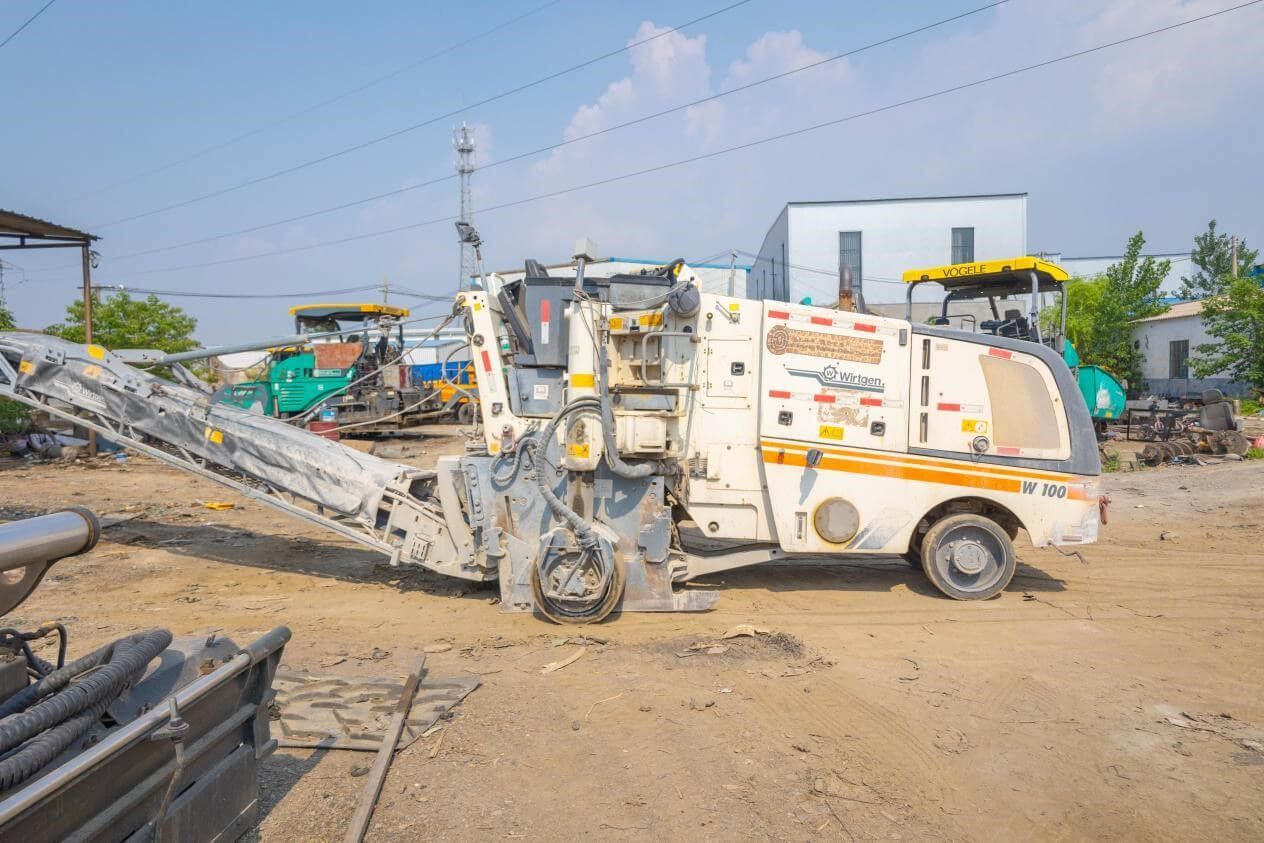

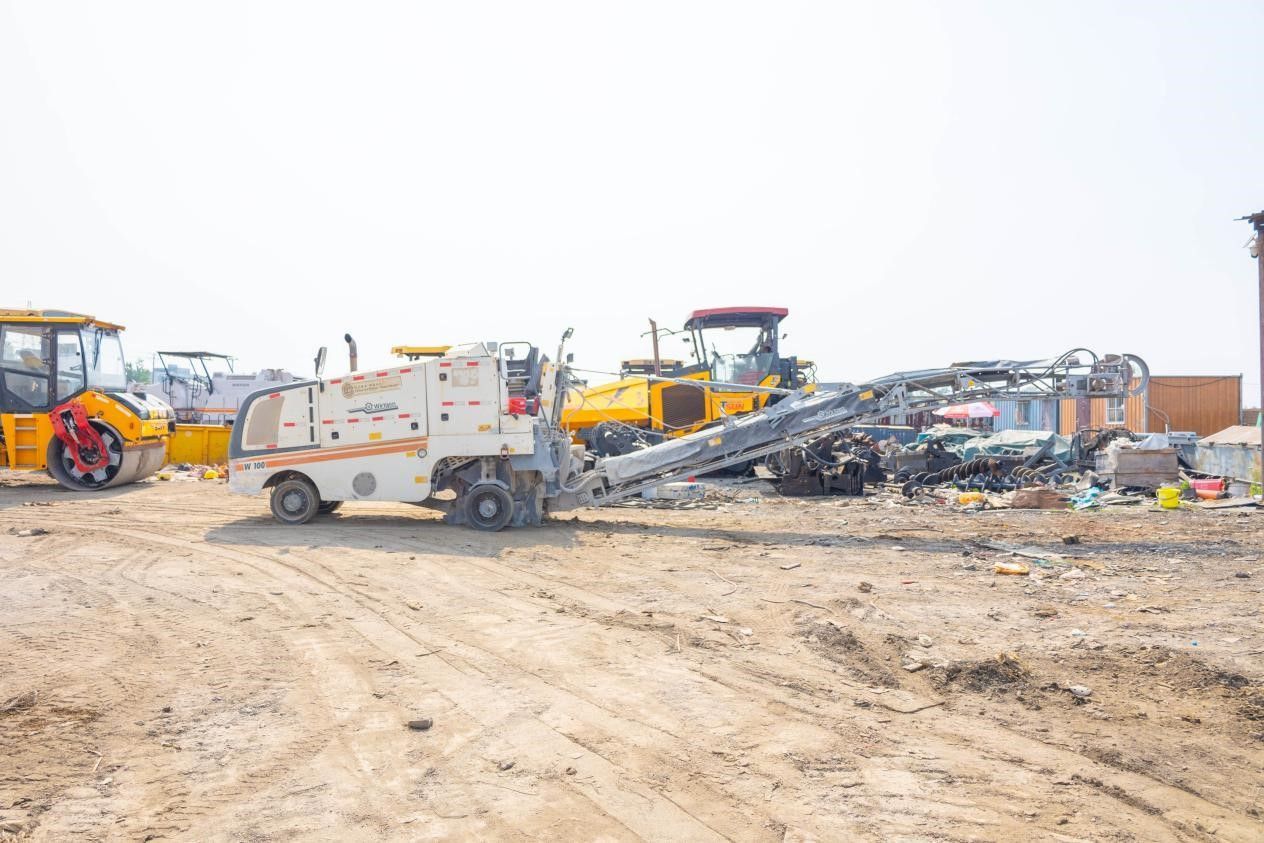

The Wirtgen W100 Wheel Milling Machine
Description:
Quick Details
| Usage | Construction Machinery | Milling Width | 1,000 mm |
| Milling Depth | 0–200 mm | Operating Weight | Approx. 12–14 tonnes |
| Shipping Speed | 0–20 km/h |
Product Details
1. Flexible and efficient- Compact wheeled design for small-scale milling operations (e.g. pavement repair, trench excavation, etc.) with high maneuverability and easy transitions. - Working widths of up to 1,000 mm (depending on drum model) and milling depths typically up to 0–200mm.

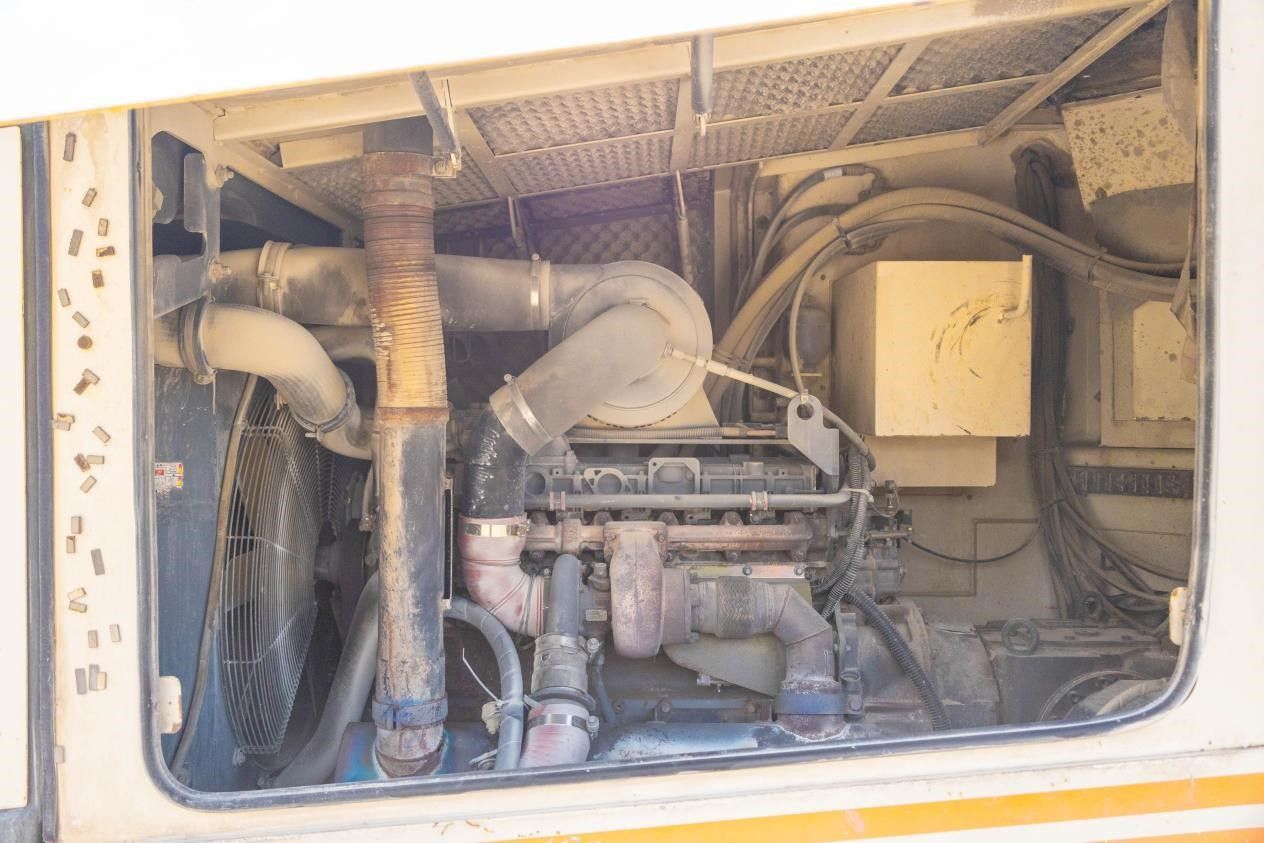

2. Power System - Equipped with a high-performance diesel engine, Deutz
3. Milling Techniques - Wirtgen's patented milling drum design and quick-change system for cutter heads ensure efficient milling and low wear.
4. Easy to control - Hydraulically driven wheeled travel system, continuously variable speed control.
5. Environmental Protection & Maintenance - Water spray system reduces construction dust. - The engine compartment is easy to access and low maintenance. ---
II. Typical Application Scenarios - Partial milling of asphalt pavements (e.g. rutting, packing). - Concrete pavement brushing or stripping. - Small-scale milling tasks in municipal engineering.
3. Technical parameters (reference)
Project Parameter
Milling width | 1,000 mm
Milling depth | 0–200 mm
Operating Weight | approx. 12–14 tonnes (depending on configuration)
Walking speed | 0–6 km/h (operating)
Shipping speed | 0–20 km/h (transition)

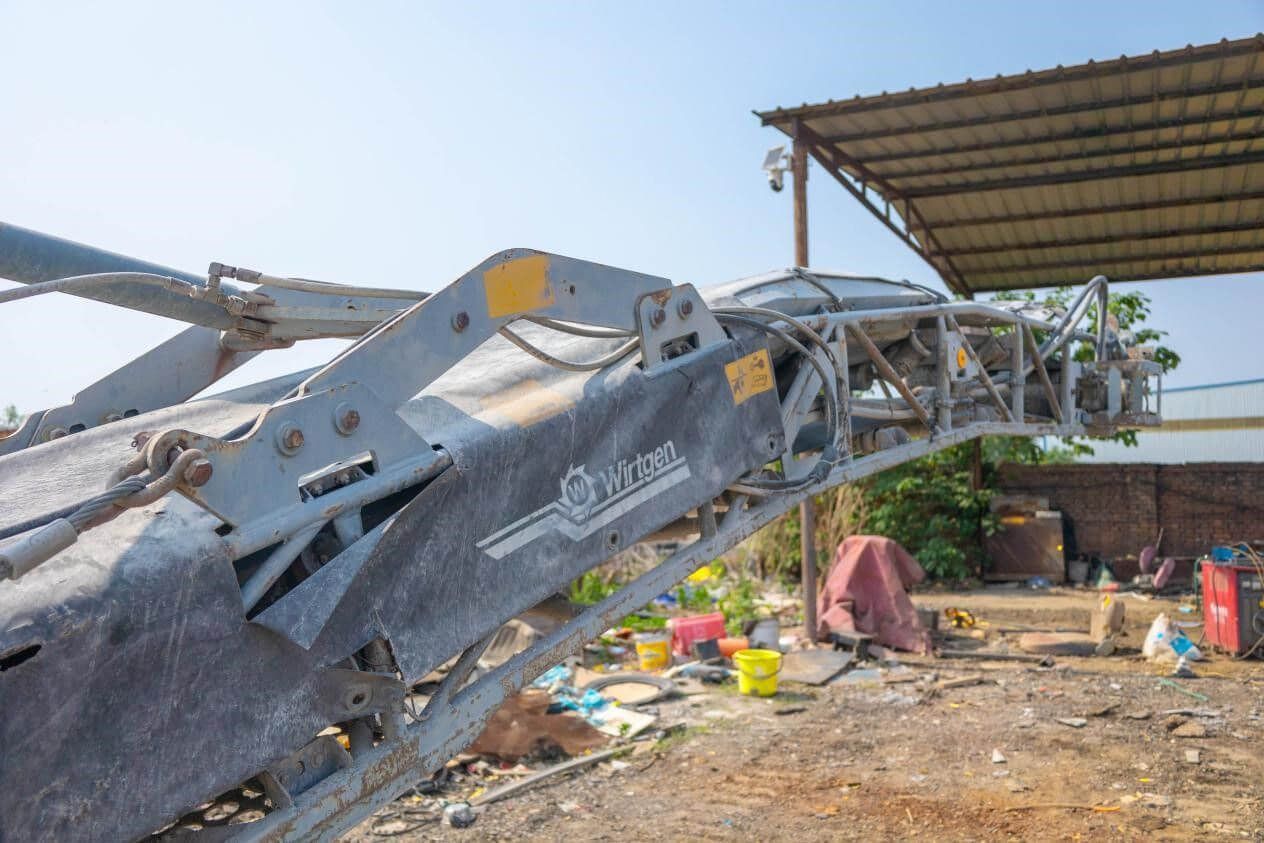

Material conveyor belt | Non-foldable design
